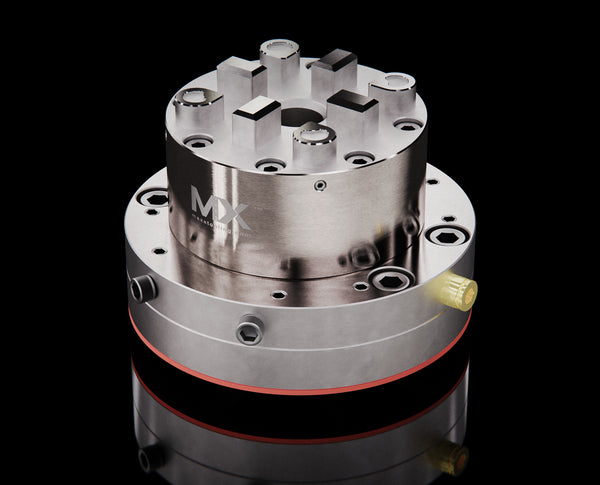

MaxxMacro 70 Pneumatic Chuck With Adjustable Base is 100% cross compatible with System 3R. MaxxMacro 70 Pneumatic Chuck with Adjustable Base is ideal for attachment to EDM machines and machine spindles. Its mounting plate provides optimal rotational and perpendicular adjustments.
A specialized insulator plate is included for EDM applications, and should be omitted for non-EDM or CNC installations.
Repetition accuracy: – within 0.002 mm
- Required drawbar MaxxMacro HP Automatic 605 Drawbar
| Version |
MaxxMacro 70 Pneumatic Chuck With Adjustable Base Old Part number MX-PN-3REDM |
| Material | 440C Chuck , HB57-60, 420 Base |
| Size | D130*99mm |
| Locking | Pneumatic |
| Force power |
6000N |
| Application |
For clamping electrode holders or workpieces |
